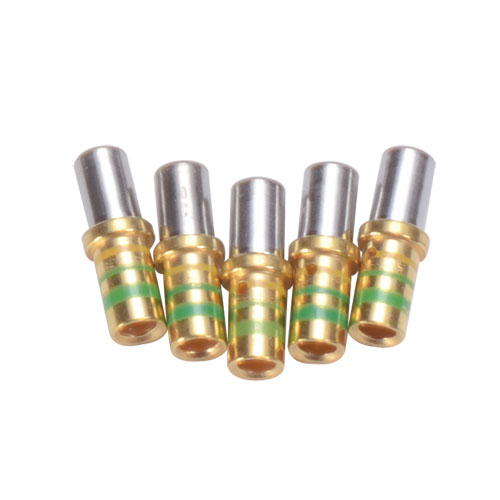

M39029/101-554 Socket Contact

M39029/101-554 Socket Contact

Item #: M39029/101-554

Availability: In stock

$3.97

Quick Overview

None
This Socket contact is a crimp type which is removable from the connectors after installation using the proper installation removal tool. Compliant with SAE M39029 and QPL listed. Suited for harsh enviroments the contact is designed for 500 mating cycles and is constructed of a Copper Alloy which is Class A rated from temperature range -65C to +200C.

Specifications

  • Socket contact size 16
  • Gold Plated
  • Wire barrel size 16
  • BIN code Green/Green/Yellow

    • Features

  • Meets MIL-S-12883
  • Mating Contact MIL-S-12883 Relay Sockets
