M39029/102-558 Coax Pin size 12

M39029/102-558 Coax Pin size 12

Item #: M39029/102-558

Availability: In stock

$20.59

Quick Overview

None

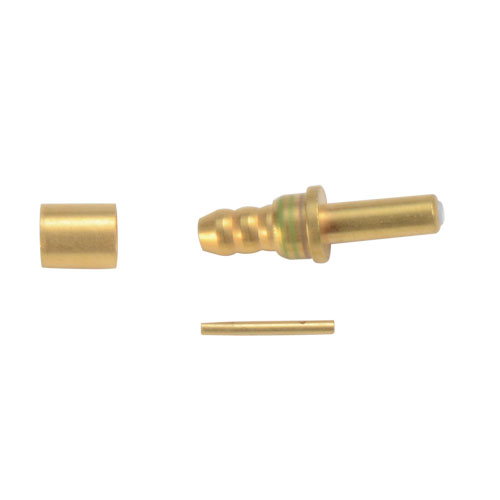

This Coaxial contact is a crimp type which is removable from the connectors after installation using the proper installation removal tool. Compliant with SAE M39029 and QPL listed. Suited for harsh enviroments the contact is designed for 500 mating cycles and is constructed of a Copper Alloy which is Class B rated from temperature range -65C to +200C.

Specifications

  • Coaxial Pin contact size 12
  • Gold Plated
  • Use on RG316/RG179
  • BIN code Green/Green/Gray

    • Features

  • Meets MIL-C-38999 Series I, Series II, Series III, Series IV
  • Mating Contact M39029/103
