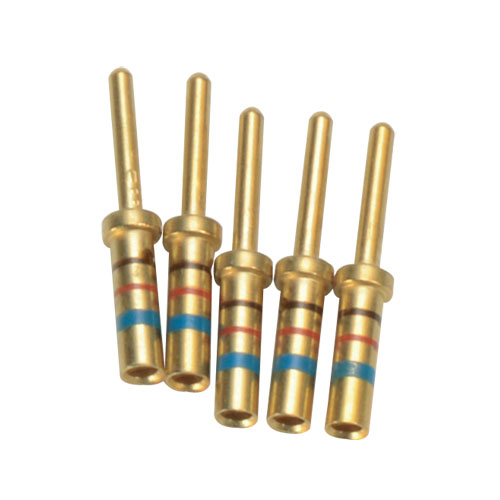

M39029/107-621 Pin Contact size 20

M39029/107-621 Pin Contact size 20

Item #: M39029/107-621

Availability: In stock

$1.17

Quick Overview

None
This PIN contact is a crimp type which is removable from the connectors after installation using the proper installation removal tool. Compliant with SAE M39029 and QPL listed. Suited for harsh enviroments the contact is designed for 500 mating cycles and is constructed of a Copper Alloy which is Class B rated from temperature range -65C to +200C.

Specifications

  • Pin contact size 20
  • Gold Plated
  • Wire barrel size 20
  • BIN code Blue/Red/Brown

    • Features

  • Meets MIL-C-29600, Meets MIL-C-38999 Series I, III, IV
  • Mating contact M39029/106
