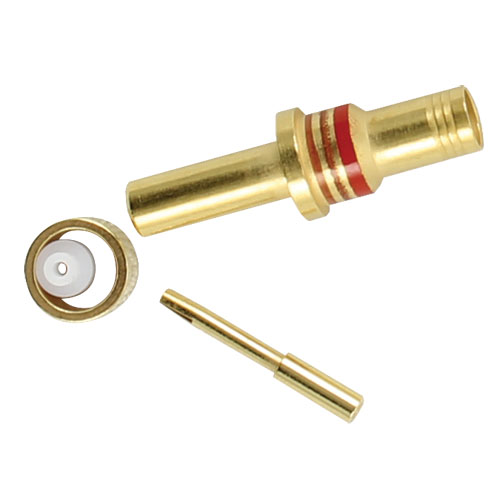

M39029/28-211 Pin Contact size 12

M39029/28-211 Pin Contact size 12

Item #: M39029/28-211

Availability: In stock

$23.89

Quick Overview

None
This PIN contact is a crimp type which is removable from the connectors after installation using the proper installation removal tool. Compliant with SAE M39029 and QPL listed. Suited for harsh enviroments the contact is designed for 500 mating cycles and is constructed of a Copper Alloy which is Class B rated from temperature range -65C to +200C.

Specifications

  • Shielded Pin contact size 12
  • Gold Plated
  • Use on RG174/RG316/RG179
  • BIN code Red/Brown/Black

    • Features

  • Meets MIL-C-38999 Series I, Series II, Series III, Series IV
  • Mating Contact M39029/27 & /75
