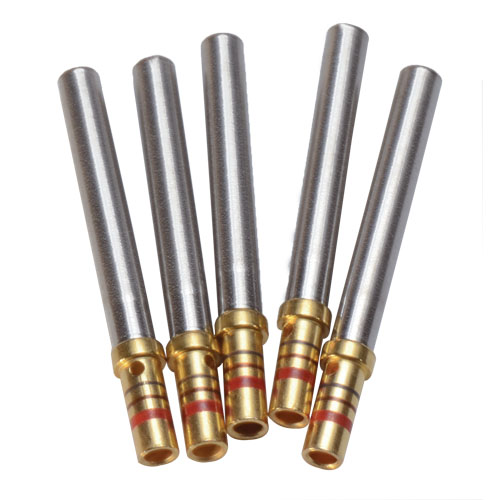

M39029/30-218 Socket Contact size 16

M39029/30-218 Socket Contact size 16

Item #: M39029/30-218

Availability: In stock

$2.68

Quick Overview

None
This Socket contact is a crimp type which is removable from the connectors after installation using the proper installation removal tool. Compliant with SAE M39029 and QPL listed. Suited for harsh enviroments the contact is designed for 500 mating cycles and is constructed of a Copper Alloy which is Class A rated from temperature range -65C to +200C.

Specifications

  • Socket contact size 16
  • Gold Plated
  • Wire barrel size 16
  • BIN code Red/Brown/Gray

    • Features

  • Meets MIL-C-5015 (MS3450), MIL-C-83723 Series II
  • Mating contact M39029/29
