M39029/31-627 Pin Contact

M39029/31-627 Pin Contact

Item #: M39029/31-627

Availability: In stock

$2.89

Quick Overview

None

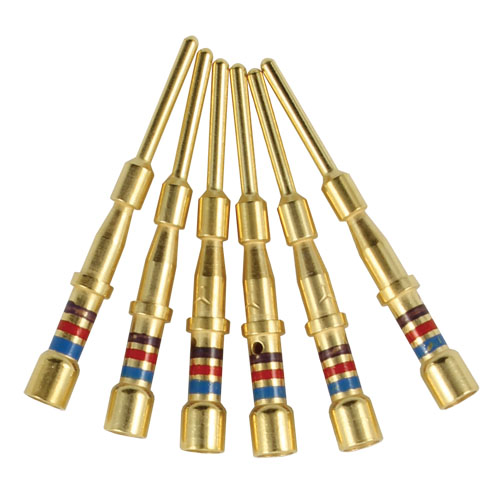

This PIN contact is a crimp type which is removable from the connectors after installation using the proper installation removal tool. Compliant with SAE M39029 and QPL listed. Suited for harsh enviroments the contact is designed for 500 mating cycles and is constructed of a Copper Alloy which is Class B rated from temperature range -65C to +200C.

Specifications

  • Pin contact size 20
  • Gold Plated
  • Wire barrel size 20
  • BIN code Red/Brown/Red

    • Features

  • Meets MIL-C-39029, MIL-C-29600
