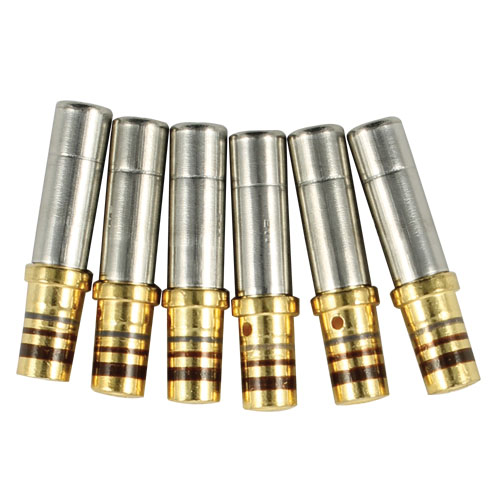

M39029/5-118 Socket Contact size 12

M39029/5-118 Socket Contact size 12

Item #: M39029/5-118

Availability: In stock

$2.59

Quick Overview

None
This Socket contact is a crimp type which is removable from the connectors after installation using the proper installation removal tool. Compliant with SAE M39029 and QPL listed. Suited for harsh enviroments the contact is designed for 500 mating cycles and is constructed of a Copper Alloy which is Class A rated from temperature range -65C to +200C.

Specifications

  • Socket contact size 12
  • Gold Plated
  • Wire barrel size 12
  • BIN code Brown/Brown/Gray

    • Features

  • Meets MIL-C-26482 Series II, MIL-C-81703 Series III, MIL-C-83723 Series III, MIL-C-83733
  • Mating Contact M39029/4
