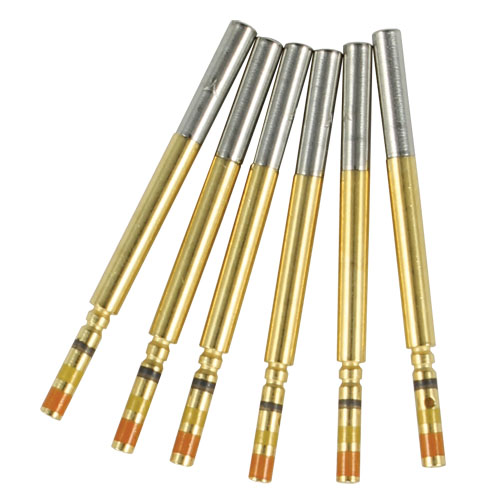

M39029/56-348 Socket Contact size 22

M39029/56-348 Socket Contact size 22

Item #: M39029/56-348

Availability: In stock

$0.67

Quick Overview

None
This Socket contact is a crimp type which is removable from the connectors after installation using the proper installation removal tool. Compliant with SAE M39029 and QPL listed. Suited for harsh enviroments the contact is designed for 500 mating cycles and is constructed of a Copper Alloy which is Class A rated from temperature range -65C to +200C.

Specifications

  • Socket contact size 22
  • Gold Plated
  • Wire barrel size 22D
  • BIN code Orange/Yellow/Gray

    • Features

  • Meets MIL-C-38999 Series I, III, IV
  • Mating Contact M39029/58
