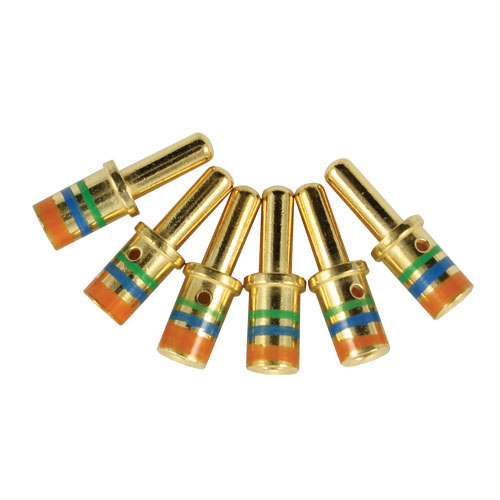

M39029/58-365 Pin Contact

M39029/58-365 Pin Contact

Item #: M39029/58-365

Availability: In stock

$2.19

Quick Overview

None
This PIN contact is a crimp type which is removable from the connectors after installation using the proper installation removal tool. Compliant with SAE M39029 and QPL listed. Suited for harsh enviroments the contact is designed for 500 mating cycles and is constructed of a Copper Alloy which is Class B rated from temperature range -65C to +200C.

Specifications

  • Pin contact size 12
  • Gold Plated
  • Wire barrel size 12
  • BIN code Orange/Blue/Green

    • Features

  • Meets MIL-C-24308, MIL-C-38999 Series I, II, III, IV; MIL-C-55302/69, MIL-C-83733
  • Mating Contact M39029/56, 57
