M39029/75-416 Socket Contact size 12

M39029/75-416 Socket Contact size 12

Item #: M39029/75-416

Availability: In stock

$26.19

Quick Overview

None

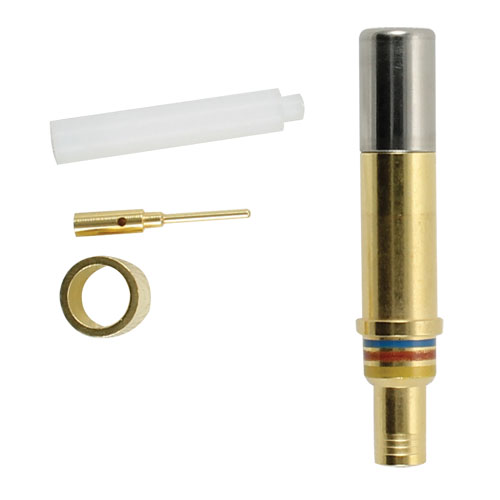

This Socket contact is a crimp type which is removable from the connectors after installation using the proper installation removal tool. Compliant with SAE M39029 and QPL listed. Suited for harsh enviroments the contact is designed for 500 mating cycles and is constructed of a Copper Alloy which is Class A rated from temperature range -65C to +200C.

Specifications

  • Shielded Socket contact size 12
  • Gold Plated
  • RG174, RG316, RG179
  • BIN code Yellow/Brown/Blue

    • Features

  • Meets MIL-C-38999, Series I, II, III, IV
  • Mating Contact M39029/28
