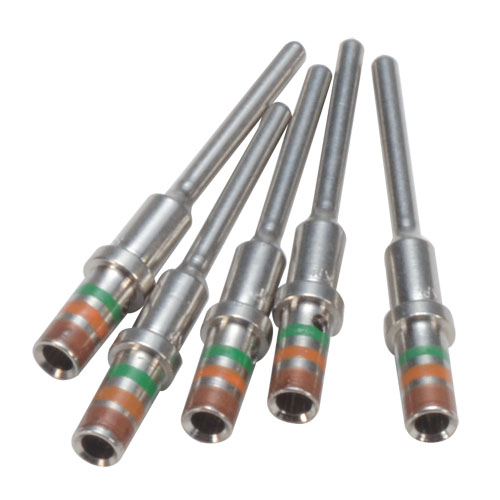

M39029/9-135 Pin Contact Thermocouple

M39029/9-135 Pin Contact Thermocouple

Item #: M39029/9-135

Availability: In stock

$22.49

Quick Overview

None
This PIN contact is a crimp type which is removable from the connectors after installation using the proper installation removal tool. Compliant with SAE M39029 and QPL listed. Suited for harsh enviroments the contact is designed for 500 mating cycles and is constructed of a Copper Alloy which is Class B rated from temperature range -65C to +200C.

Specifications

  • Shielded Socket contact size 12
  • Gold Plated
  • Use on 24 Awg
  • BIN code Brown/Brown/Brown

    • Features

  • Meets MIL-C-26482 Series II, MIL-C-81703 Series III
  • Mating Contact M39029/7
